Bridge PVC Drain Pipe Fixing
Pipe Support Clamp
Galvanized and stainless steel pipe clamps for bridge PVC drainage pipes, wall-mounted rainwater pipes, tunnels and municipal pipeline fixing.
Product Overview
Stable fixing for bridge drainage pipes
Bridge PVC pipe support clamp, also called drain pipe hoop or pipe bracket, is a dedicated fixing accessory for bridge PVC drainage pipes. It secures pipes to beam bodies, pier sides and concrete walls, reducing shaking, sagging and falling caused by vehicle vibration, wind load and outdoor exposure.
The clamp can be supplied as U-bolt type or two-half split hoop type. Common materials include hot-dip galvanized steel, 201 stainless steel and 304 stainless steel. Rubber lining pads can be added inside the clamp to absorb vibration and protect PVC or HDPE pipes from direct metal contact.
Available Structures
U type and split hoop pipe clamps
Different structures can be selected according to pipe diameter, installation position, anti-corrosion requirement and project drawing.

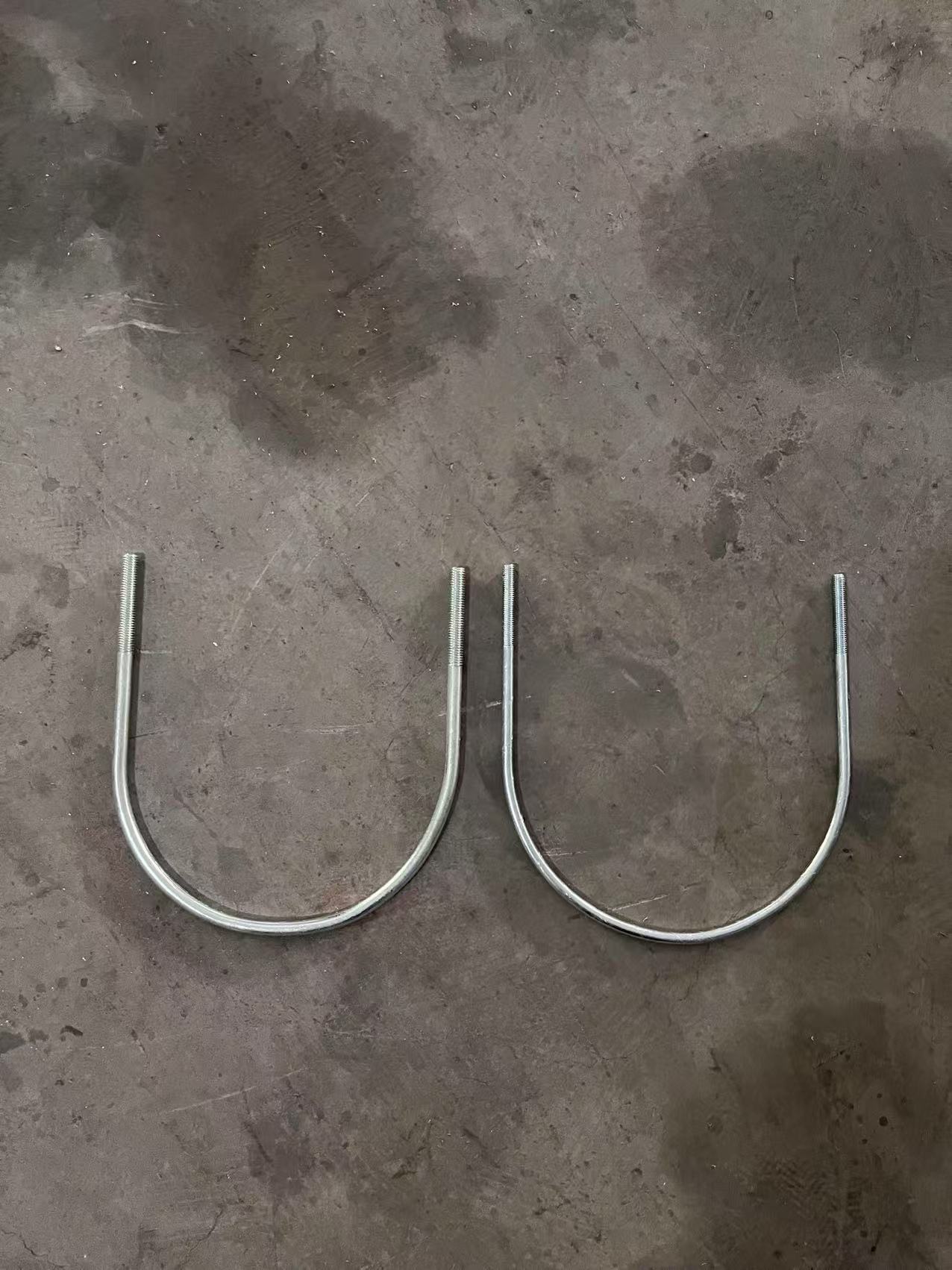

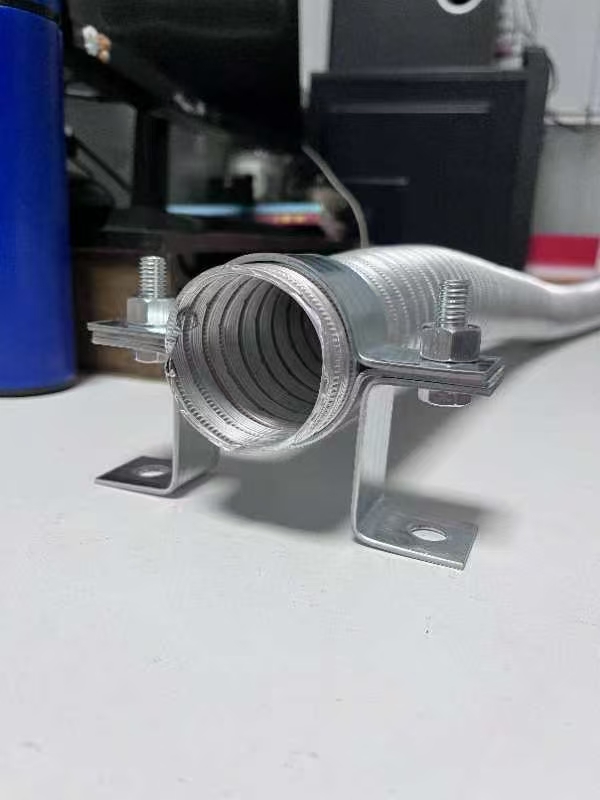

U Type Pipe Clamp
Compact and economical. Suitable for general PVC drain pipe fixing, wall installation and projects that need fast installation with bolts and expansion screws.

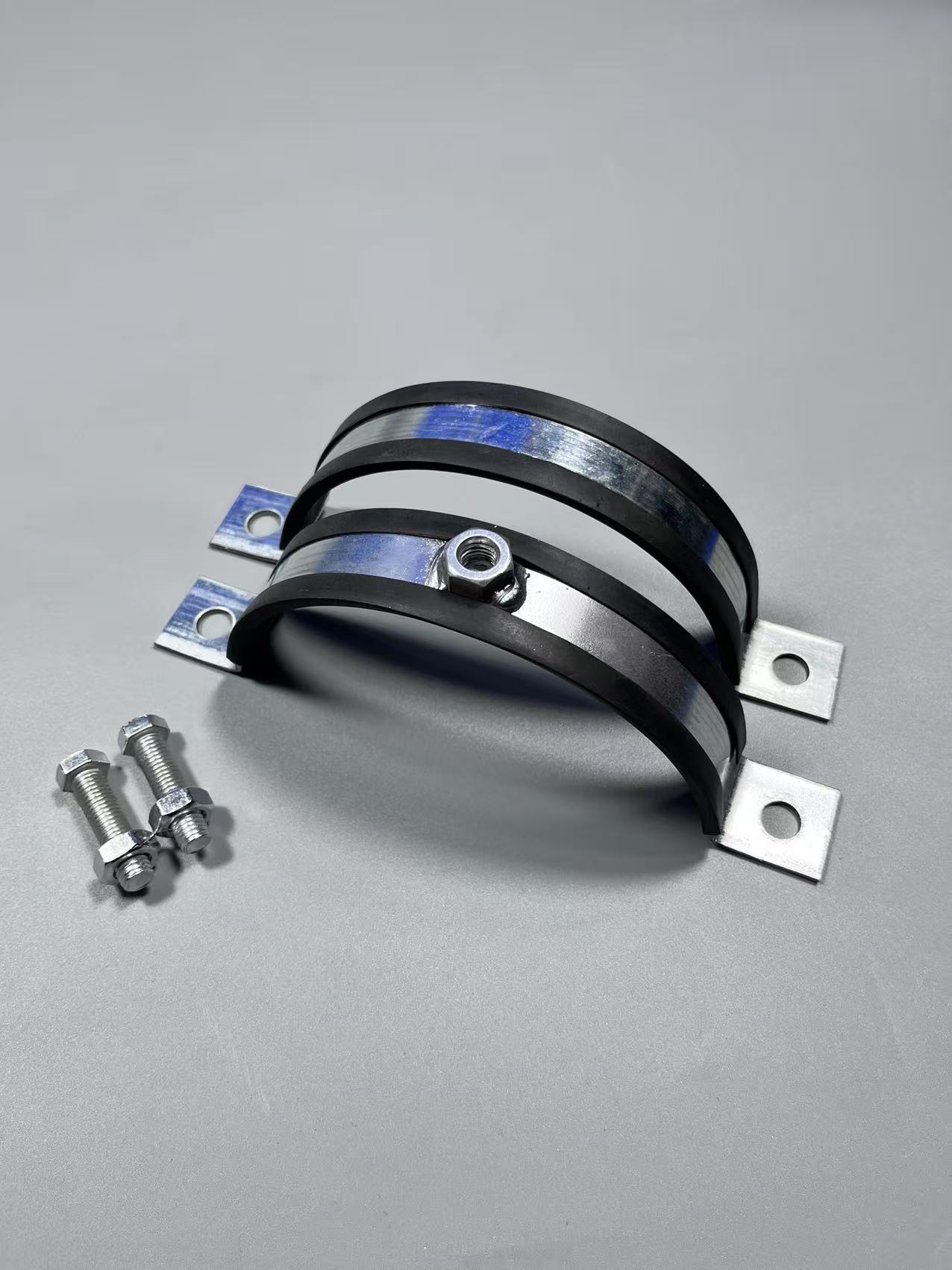

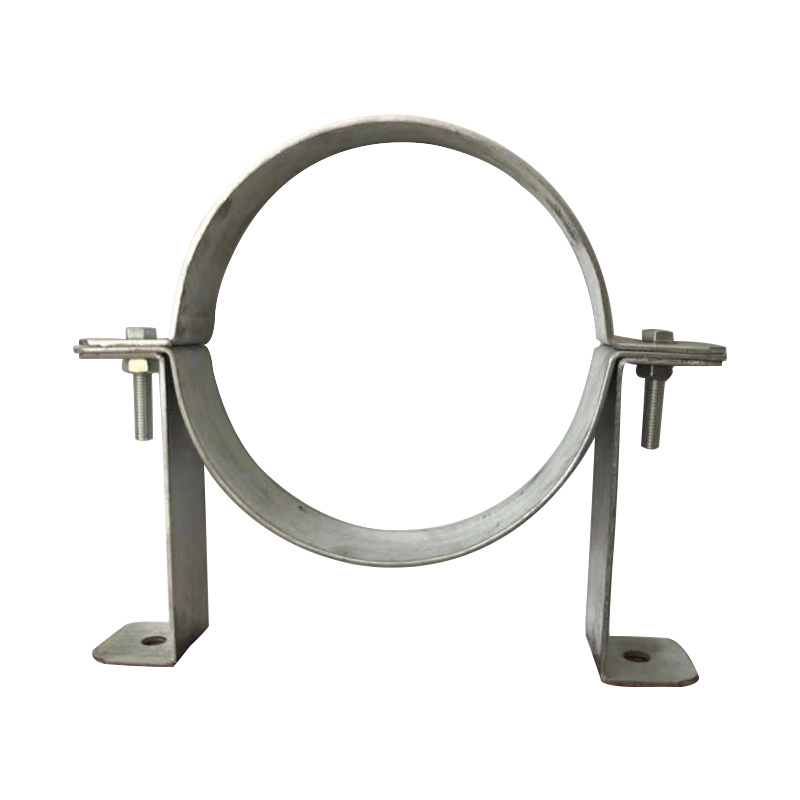

Split Hoop Clamp With Rubber Lining
Better pipe protection. Two-half clamp structure with rubber cushion helps reduce vibration and avoids scratching PVC and HDPE pipe surfaces.
Key Advantages
Built for outdoor bridge and municipal projects
Anti-corrosion material
Hot-dip galvanized steel is recommended for inland projects, while 304 stainless steel is preferred for coastal and salt-fog environments.
Pipe protection
Optional rubber cushion reduces vibration and prevents metal edges from damaging PVC, HDPE and other plastic pipes.
Custom production
DN50-DN400mm common sizes are available, with non-standard pipe diameters, brackets and bolt layouts produced according to drawings.
Application
For bridges, tunnels, buildings and outdoor pipelines
Besides highway and municipal bridge PVC drainage pipe systems, this pipe support clamp is also suitable for exterior wall rainwater pipes, tunnel drainage, municipal rainwater and sewage pipelines, sewage treatment plants, photovoltaic projects and communication base stations.
It can fix PVC, HDPE and similar plastic pipes in outdoor environments, resisting vibration, wind and sunlight while keeping the pipeline system secure over long service periods.
Technical Parameters
Common specifications
| Item | Parameter |
|---|---|
| Product Name | Bridge PVC drain pipe clamp / pipe support clamp |
| Product Type | U type clamp, two-half split hoop clamp, customized according to drawings |
| Pipe Diameter | DN50-DN400mm |
| Main Material | Galvanized steel / 201 stainless steel / 304 stainless steel |
| Accessories | Rubber cushion, fastening bolts, expansion screws |
| Application | Highway bridges, municipal viaducts, overpasses and drainage pipe fixing |

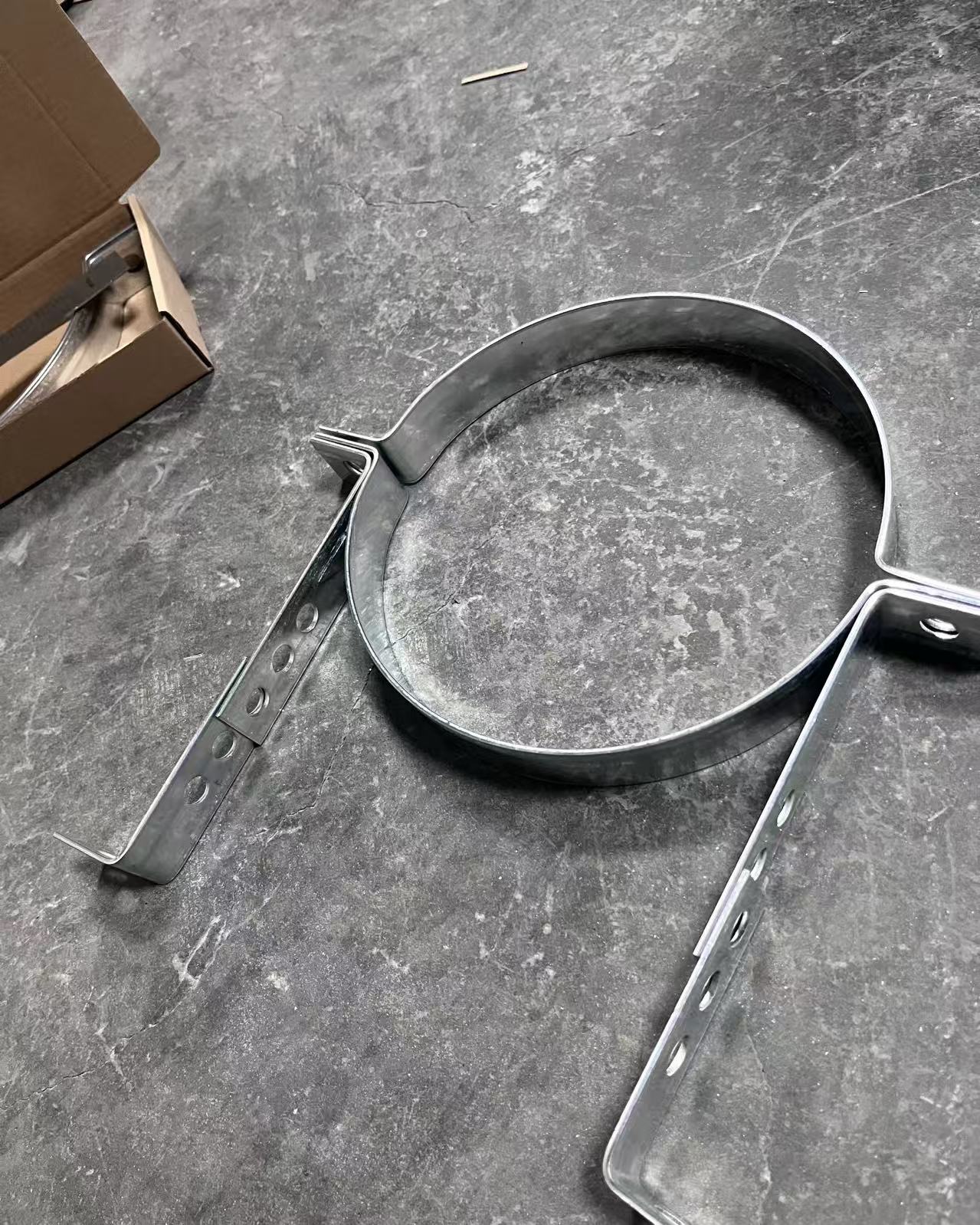

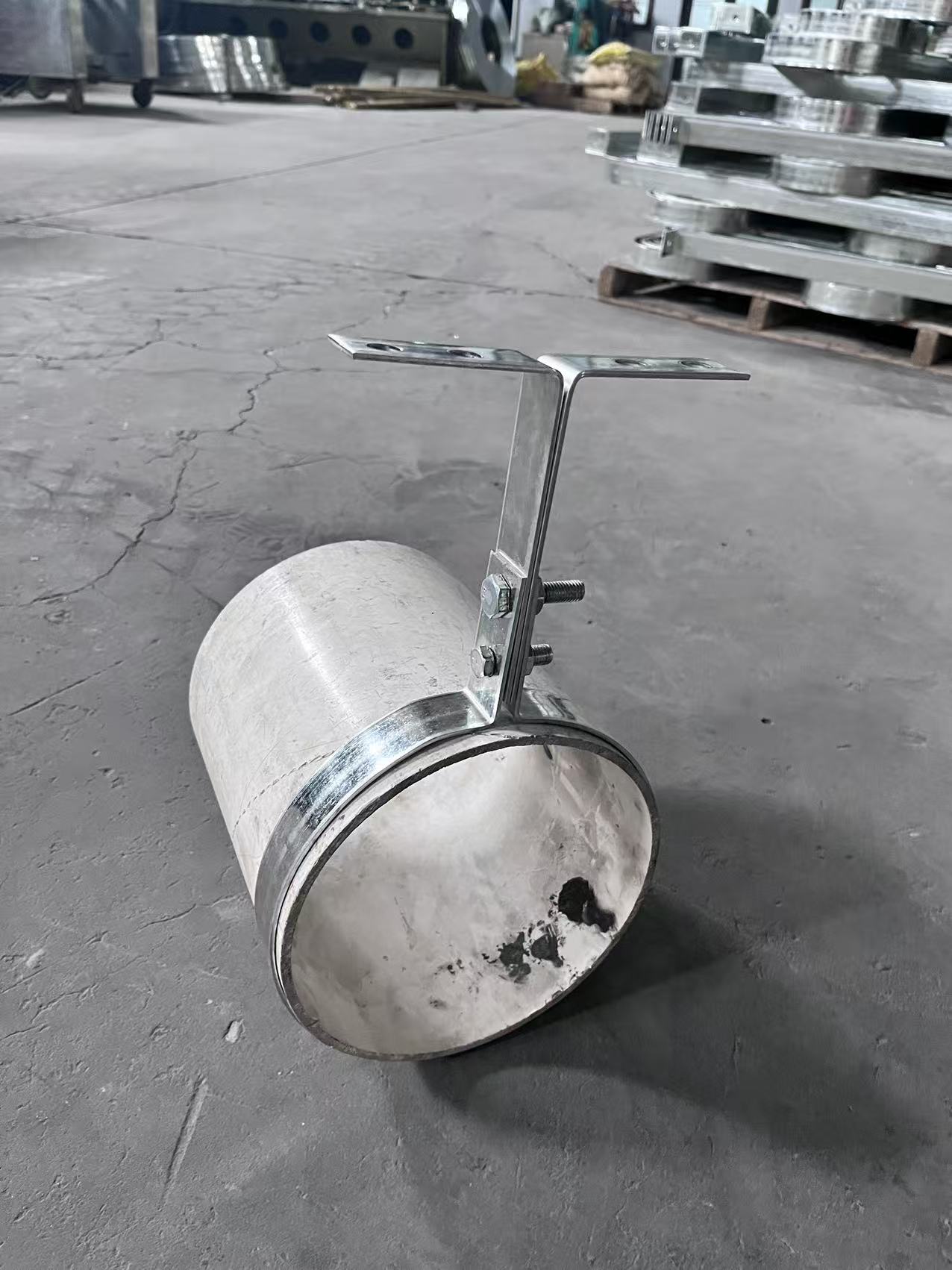

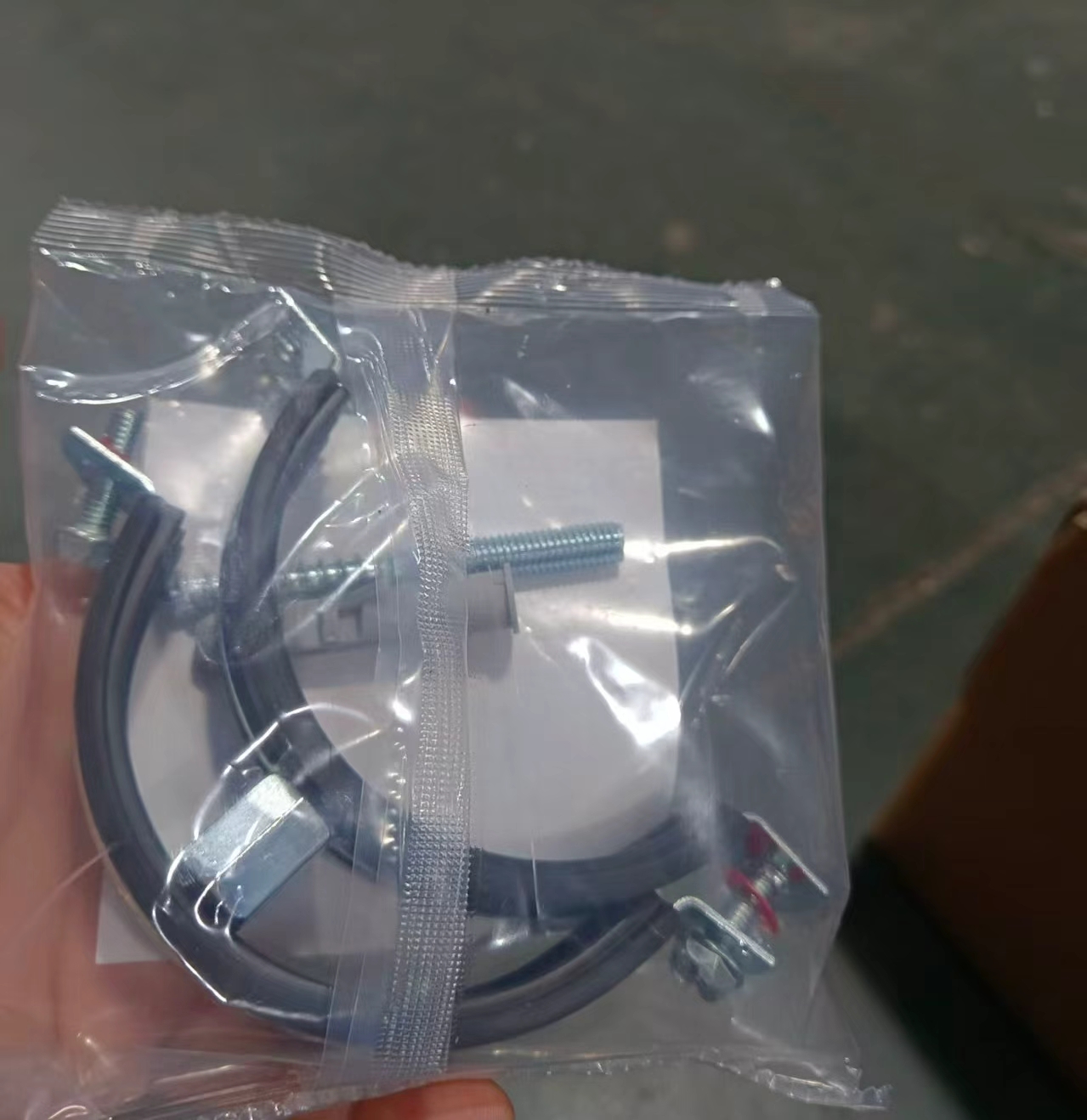

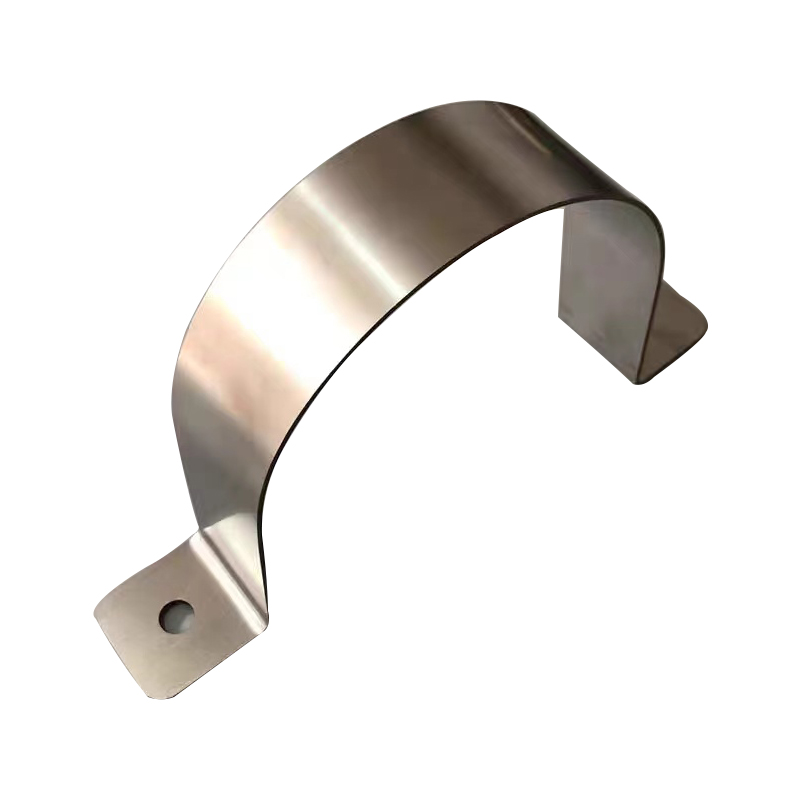

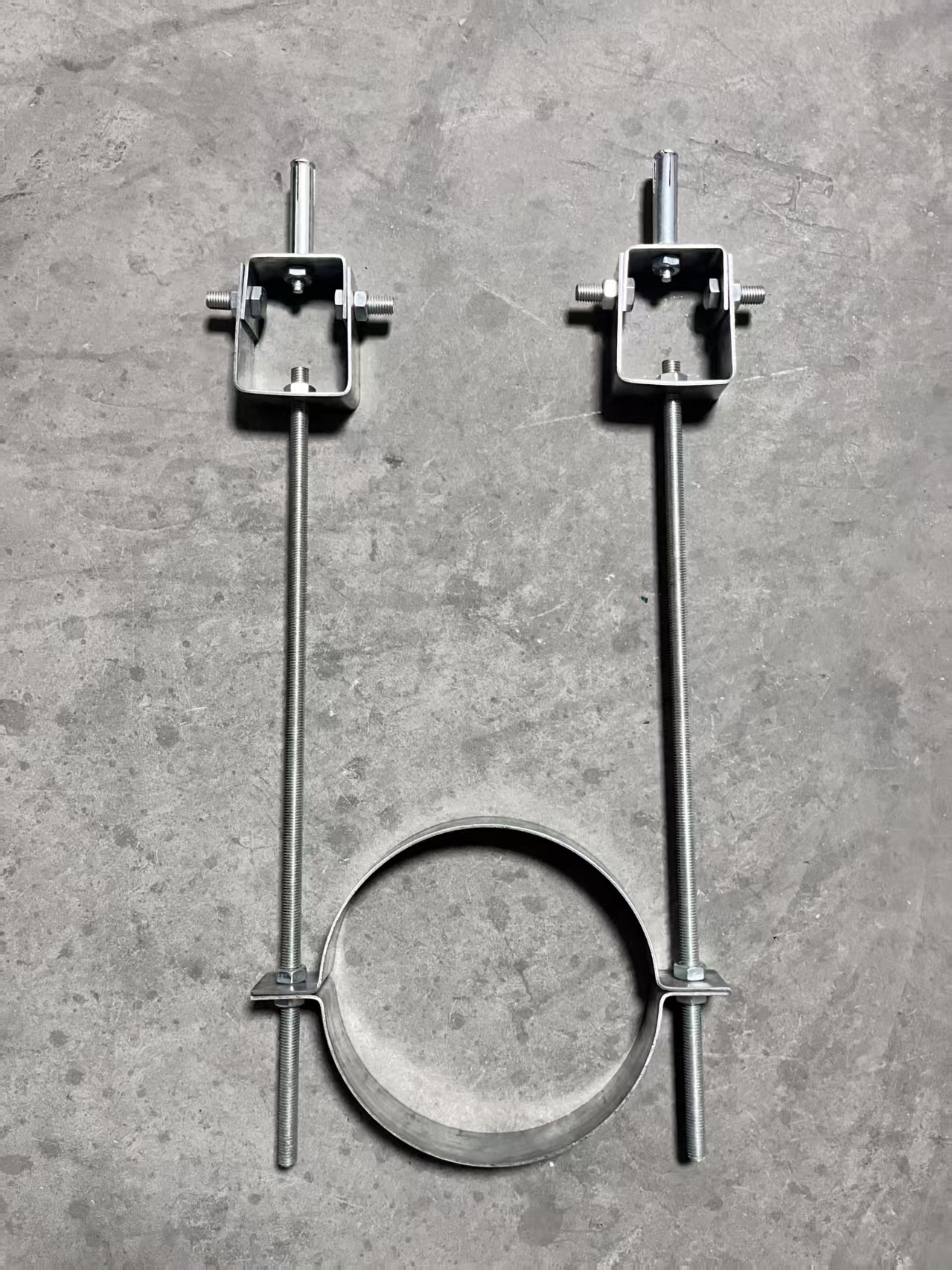

Product Gallery

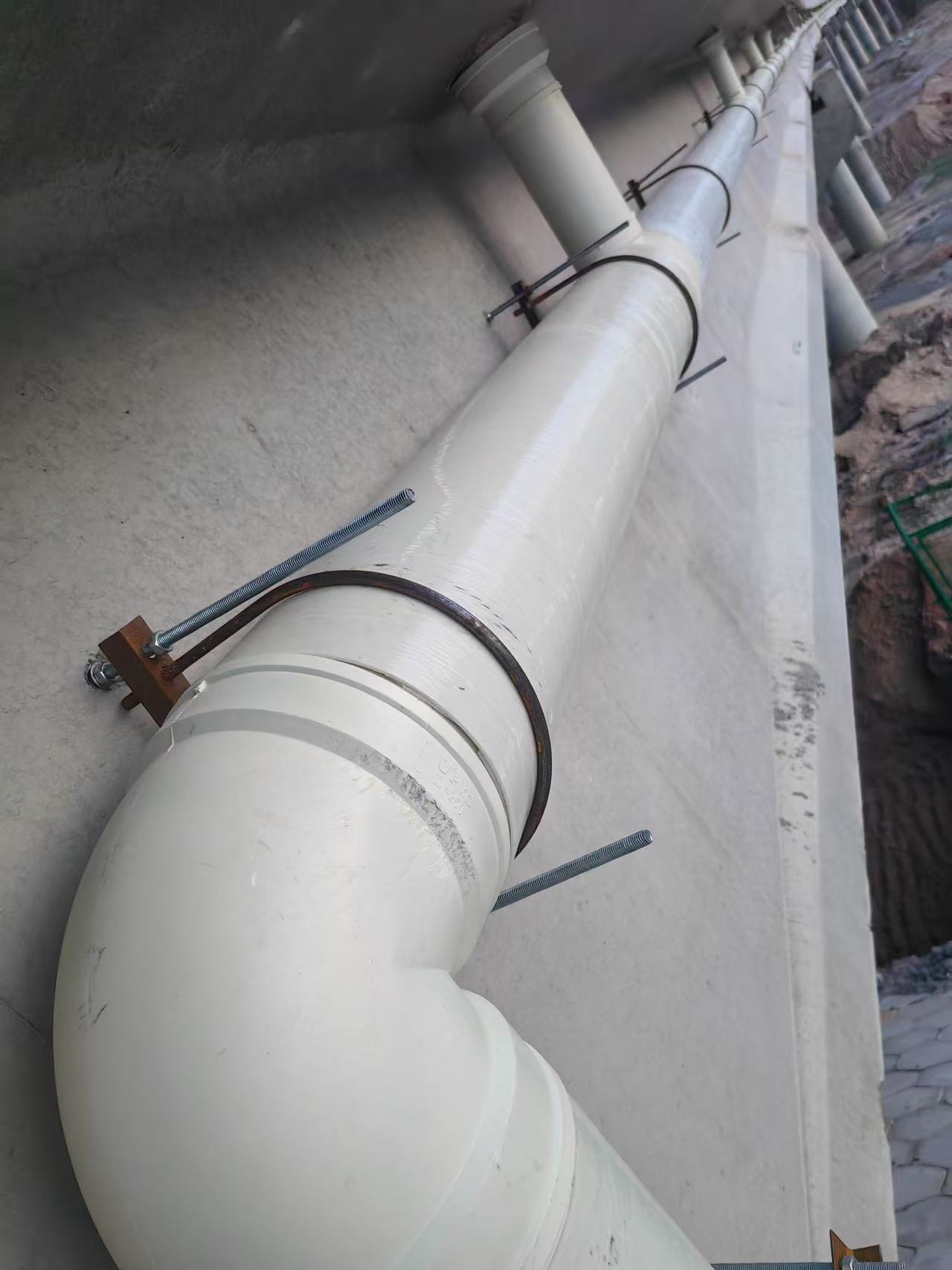

Pipe clamp details and site installation
Custom Sizes Available
Send drawings or pipe diameter for quotation
Hebei Youou supports customized pipe clamp production, batch stock supply and factory documents for project delivery. Tell us your pipe diameter, material requirement and installation drawing, and we will provide a practical quotation.
